TECHNICAL CHARACTERISTICS
ECO curtain generation
- Lighter structure
- Reduced footprint
- Simplified and faster assembly
- Eco-friendly product, does not require special disposal
ECO EI2 120 Fire Curtains
| PRODUCT TYPE | Single-layer flexible roller curtains |
| MOVEMENT DIRECTION | Vertical |
| INTENDED USE | Closing of openings in vertical partition walls |
| RESISTANCE CLASS | EI2 120 |
| APPROVAL DOCUMENTS | CE 1396-CPR-0203 issued by Fires (n° 1396) |
| COMPLIED STANDARDS | EN 16034, EN 13241 |
| FABRIC WEIGHT | 8,5 kg/m2 |
| CE DIMENSIONS | 12 000 mm x 8000 mm (LN x HN) |
Interior flexible fire roller curtain in class EI2 120
“Gravity Safe” Closing:
Gravity-driven closing in case of fire.
Seamless shaft, treated with anti-corrosive paint; the shaft diameter varies based on the curtain dimensions
Curtain fabric made with multilayer technology:
- Glass fiber fabric reinforced with stainless steel wire mesh, coated with a light gray silicone layer.
– Gray color similar to RAL 7035 (the fabric cannot be painted). - Anti-tear system: Bearings are located on the fabric edges, forming a protection system against accidental tearing from the guides.
Counterweight at the end of the fabric made with steel rods
Headbox consisting of a cage:
- Galvanized steel side plates, functioning both as shaft housing and side closure for the headbox.
- Support profiles along the entire width of the headbox: U-shaped (for face-fix mounting) or L-shaped (for reveal mounting).
- One layer of insulation panel (20 mm thickness) on the fire-exposed side (in case of face-fix mounting – at the front; in case of reveal mounting – at the front and behind the headbox). Note: The provided sources for the “ECO” model specifically state that there is no insulation panel included in that specific version.
- Galvanized steel cladding: the cage is enclosed with galvanized steel sheet.
Motor (determined based on curtain dimensions and weight):
- Becker, internal single-phase tubular motor. Required current: 220 V
- GfA, external three-phase motor. Required current: 380 V
Side Guides:
- Galvanized steel profile.
- One layer of insulation panel (20 mm thickness). Note: It is important to mention that for the specific “ECO” model described in the sources, it is explicitly stated that there is no insulation panel included.
- Galvanized steel cladding.
Face-fix mounting:
205 mm footprint.
In-reveal fixing:
150 mm footprint.
Control Unit:
- Backup batteries to maintain the curtain in an open position in case of power failure.
- Collegamento della tenda a qualsiasi sistema di allarme antincendio.
- Volt-free contacts for connecting potential fire detection accessories and/or monitoring systems.
Additional Options:
- Smoke sensors, release button, visual and acoustic signals.
- Painting of steel elements in any color from the RAL palette, including visible elements like the headbox, guides, and bottom bar.
- Anti-corrosive protection/painting in classes C3 to C5.
- Stainless steel construction.
- Safety bar.
- Option for cold smoke leakage Sa (depending on the product).

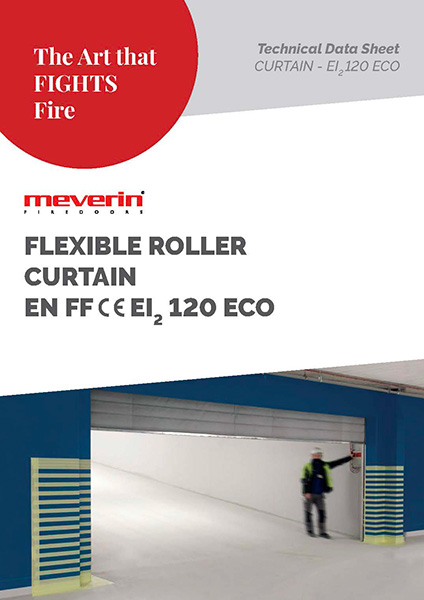

TECHNICAL DATA SHEET
