TECHNICAL CHARACTERISTICS
Mobile Smoke Barrier
| PRODUCT TYPE | Roll-up smoke barriers |
| MOVEMENT DIRECTION | Vertical |
| INTENDED USE | Protection against the spread and direction of smoke in all buildings |
| RESISTANCE CLASS | D 120 / DH 120 |
| APPROVAL DOCUMENTS | CE 1488-CPR-0112/W issued by ITB (n° 1488) |
| COMPLIED STANDARDS | EN 12101 |
| FABRIC WEIGHT | 0,75 kg/m2 |
| CE DIMENSIONS | Unlimited |
Roll-up smoke barriers in class D 120 / DH 120
“Gravity Safe” Closing:
Gravity-driven closing in case of fire.
Seamless shaft, treated with anti-corrosive paint; the shaft diameter varies based on the curtain dimensions
Barrier curtain made of a special glass fabric, 0.4 mm thick
- Coated with a light grey silicone layer.
- Resistant to temperatures up to 600 °C for a minimum period of 120 minutes (class D120).
- Resistant to temperatures up to 1350 °C for a minimum period of 120 minutes (class DH120).
- Grey color similar to RAL 7035 (the curtain cannot be painted).
Counterweight at the end of the fabric made with steel rods
Headbox
- Galvanized sheet metal housing, dimensions 20 × 20 cm.
- Costruzione modulare, le tende possono essere collegate, permettendo di creare una barriera di lunghezza e forma illimitate.
Motor
- Becker, internal single-phase tubular motor. Required current: 220 V.
Control Unit:
- Backup batteries to maintain the curtain in an open position in case of power failure.
- Connection of the curtain to any fire alarm system.
- Volt-free contacts for connecting potential fire detection accessories and/or monitoring systems.
Additional Options:
- Smoke sensors, release button, visual and acoustic signals.
- Painting of steel elements in any color from the RAL palette:
– Visible elements: housing, counterweight - Anti-corrosive protection/painting in classes C3 to C5.
- Stainless steel construction.

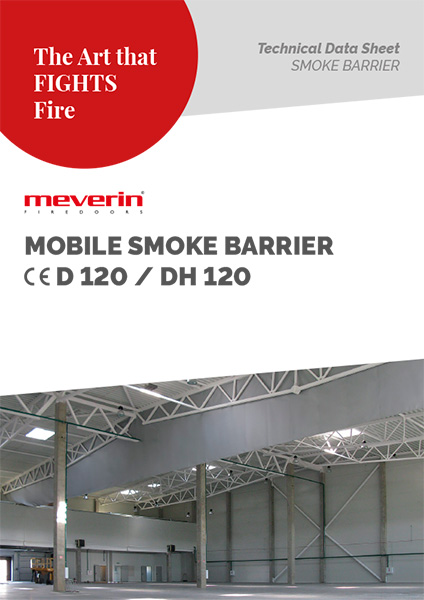

TECHNICAL DATA SHEET
