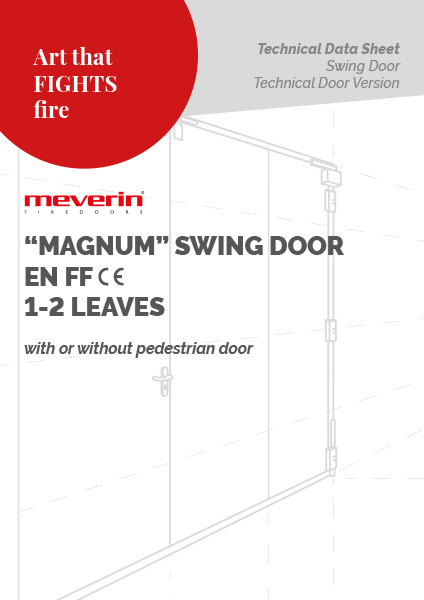

TECHNICAL “Magnum” Swing Door

Combination of a pair of sheet metal profiles made to measure designed to support significant radial loads and designed for fixing by means of dowels (not included) to the load-bearing structure in masonry or insulated and pro-tected metal structure.

Single bloc leaf made of press-folded panels in zinc-plated steel sheet with pro-grammed deformability coupled mechanically, where the size requires it. No sill. Internal insulation pack.
NEW: Door leaf with or without ventilation grille.

Accident-prevention handle made in stainless steel with double lever with re-turn spring. Handle height = 1050 mm.

Main leaf (active) with lock complete with through-cylinder.

Secondary leaf (inactive) with “self-stop” type lock for automatic upper self-latching of the leaf.

Closing by means of a large hydraulic door closer, with adjustable opening force, closing speed, and final latching action.
For larger dimensions, an additional RETURN SPRING hinge of adequate strength is provided to reinforce the door closer.
Automatic closing, by means of the above-mentioned devices, is guaranteed for a maximum opening angle of 179°.

NEW: possibility of inserting a pedestrian door.

For lower LTs ask for feasibility.
If the HT height is lower than the measurements listed above, the height of the pedestrian door is reduced (HNp).

NEW: Pedestrian door with or without vision panel (porthole).

Three per leaf, machined to support high radial loads.

• 1 door closer and 1 RETURN SPRING hinge for large dimensions.
• 1 door closer regulator for the correct closing sequence of the leaves for double leaf doors.

• On solid load-bearing masonry walls or reinforced concrete.
• On beams or insulated structures clad with plasterboard (drywall).

Structural calculations are the responsibility of the client.
The door must be installed in indoor environments not exposed to air drafts.

The doors are made of zinc-plated sheet metal and finished with an ecological primer paint, of industrial type, with high quality epoxy resins, which guarantee protection against corrosion from a vast range of aggressive agents, acid and non-acid, in environments not directly exposed to the outdoor natural atmosphe-re. Standard color RAL 7035. The full range of RAL and NCS is available on order.

NEW: Constructed in stainless steel AISI 304 or 316 (excluding the adjustment screw of the lower hinges).

Applied on the shell handle with the appropriate CE mark and with personalized polychrome CARD with identification data.

Consisting of:

• DoP declaration of performance as per UNI EN 13241
• declaration of conformity with machinery directive
• installation, use and maintenance manual
• installation instructions

• Average nominal weight 51 kg/m² wall opening
• Nominal thickness 100 mm
